Preview: Bundle uAvionix TailBeacon X-TSO + AV-30-C

Bundle uAvionix TailBeacon X-TSO + AV-30-C

uAvionix
Order number: 695595
Brand: uAvionix
ADS-B out enabled: Yes
Transmission power: 250 W
€5,478.00 *

Prices include VAT plus shipping costs

1 - 4 workdays

Depending on shipping and payment method
  • Quick shipping service
  • Parcel tracking
  • Personal advice
Description Reviews 0 Accessories & spare parts Downloads
Description
Close menu
Product information "Bundle uAvionix TailBeacon X-TSO + AV-30-C"

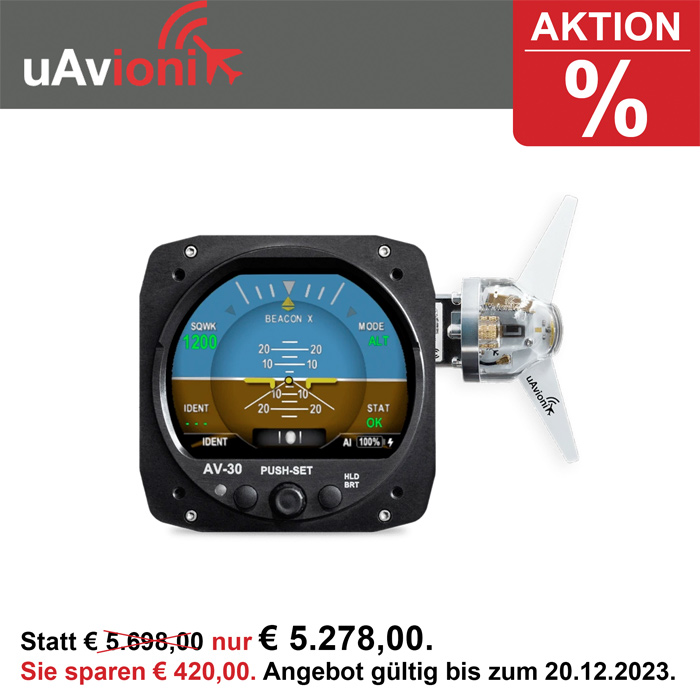

Buy the AV-30-C and the TailBeacon X as a complete kit at a special price!

uAvonix AV-30-C

Multifunctional EFIS. Upgrade your legacy vacuum driven instruments to digital precision attitude and directional gyro customizable displays. AV-30 fits in your existing 80mm panel slot seamlessly. By mounting from behind, it preserves the “round dial” look, and eliminates the need for cutting or replacing your panel. The AV-30 offers primary functions such as an artificial horizon, rate indicator and directional gyro (with optional external magentometer). Other features include g-meter, GPS navigation display, indicated airspeed, altimeter. More features are density altitude, true airspeed and aircraft bus voltage. Warns of critical angles of attack without an external sensor. A critical angle of attack is calculated from the current flight path, the g-load and the angle of attack. Internal battery for up to two hours of operation in the event of a failure of the aircraft power. An external GPS is required for use as a GPS display.

Technical data:

  • Voltage 10 - 32 VDC
  • Dimensions 86 x 86 x 41 mm
  • 3“ display (76 mm) with LED backlight
Scope of delivery: AV-30-C (certified version), installation kit. uAvionix does no longer supply the AV-30-C with internal magnetometer.

Certified version. STCs are available for many general aviation aircraft.

uAvionix TailBeacon X Transponder redefined – TailBeacon X minimizes installation effort for transponders and GPS upgrades.

TailBeacon X replaces a standard taillight with modern LED technology and integrates a fully certified transponder with ADS-B out, as well as a certified SBAS-capable GPS receiver, all within the same housing. The GPS and transponder antennas are fully integrated, eliminating the need for external installations. The LED has a lifespan of up to 20,000 hours. It can be externally controlled for example, via AV-30-C (not included in the package). EASA approved.

Technical Specifications:

  • Voltage 10 - 31 VDC
  • Current draw 3 A
  • Size 113 x 105 x 81 mm
  • Weight 140 g
Package Contents: TailBeacon X, Installation Kit, ping200X Software.
