Garmin Aera 760 set with GDL 50 ADS-B receiver

Order number: 69341
Brand: Garmin
Screen diagonal: 17,8 cm
Aviation database: Yes
WAAS / EGNOS-capable: Yes
Compatible with FLARM: Yes
Connectivity: WLAN
Bluetooth
Compatible with Garmin GDL 50: Yes
Terrain warning: Yes
Obstacle warning: ja
Device type: Portable
€2,728.00 *

Prices include VAT plus shipping costs

Delivery time on request - Contact us

  • Quick shipping service
  • Parcel tracking
  • Personal advice

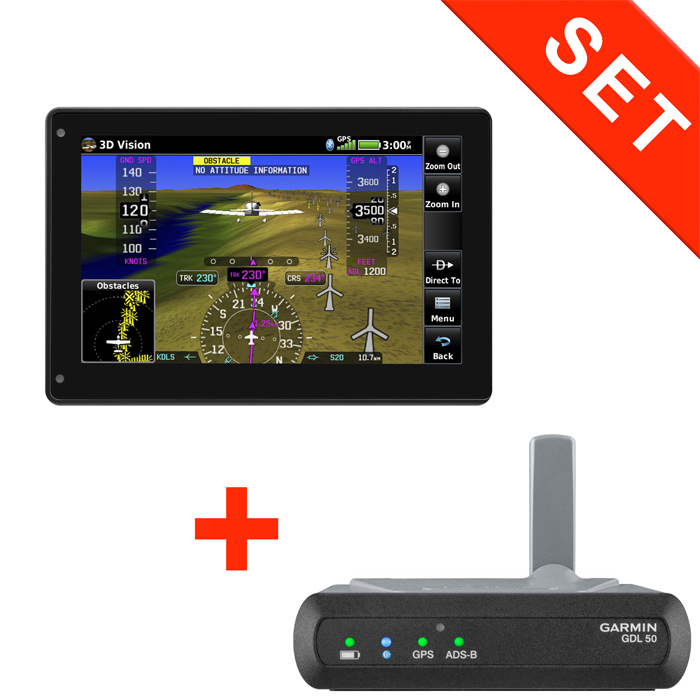

Product information "Garmin Aera 760 set with GDL 50 ADS-B receiver"
Complete package Aera 760 with GDL 50

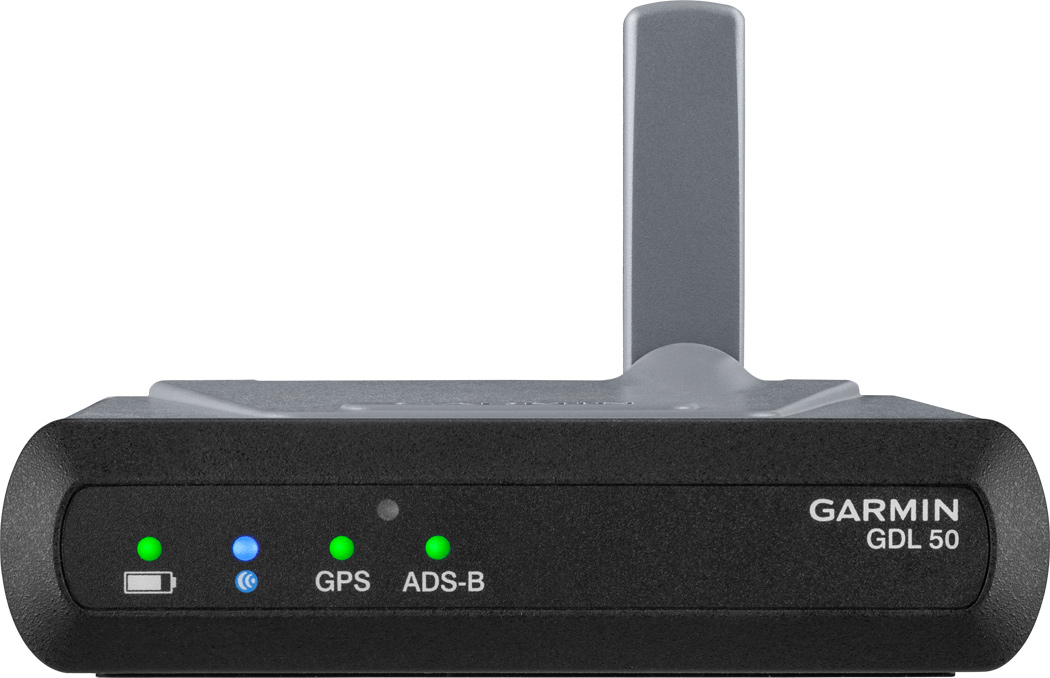

Attitude and ADS-B traffic information in the Garmin Aera 760, simply via Bluetooth! The GDL 50 receives WAAS GPS data, ADS-B traffic information and contains an attitude sensor.

The complete package includes:

Garmin´s latest portable aviation GPS comes with a bright, sunlight-readable 7-inch diagonal capacitive touchscreen display. For optimal adaptation to the pilot´s preferences it can be used in portrait or landscape format The Aera 760 is equipped with a combined GPS/GLONASS receiver and the Connext wireless connection. Connext can be used for direct database updates via a WiFi connection, without going through a PC. In 3D display mode the attitude can be displayed via the integrated attitude sensor (AHRS) when the device is mounted. Alternatively, compatible external AHRS devices, e.g. GDL 50, can be used even if the Aera 760 is not mounted.

In the Aera 760, the pilot will find many familiar features and controls from other devices in the Aera series as well as the Garmin cockpit devices, which make the transition to the new device easier. The Jeppesen Atlantic International Database provides information on aerodromes, VORs, NDBs, intersections and airspaces. In addition to the classic moving map display, a3D display is available.

The following optional charts can be installed in the unit: Jeppesen VFR and IFR airport and approach charts as well as ICAO charts Germany and other VFR charts for Europe.

Using Bluetooth® connectivity via Garmin Connext technology, the aera 760 easily interfaces with compatible devices to cut the clutter in your cockpit and improve your flying experience. With a Garmin GDL® 50 portable ADS-B/ receiver or GTX 345 all-in-one ADS-B transponder, you can access and display ADS-B advanced traffic alerts It even allows wireless control of Garmin VIRB® action cameras to start and stop recording and capture photos. With optional cables, it can be connected to Garmin on-board devices such as GTN 650/750 and GNS 430W/530W to exchange routes. When compatible Garmin NAV/COMs are connected, frequencies and airport IDs can be passed from the Aera 760.

Technical features:

  • GPS/GLONASS receiver
  • WVGA touchscreen, screen diagonal 7" (17.8 cm), 480 x 800 pixels
  • Operation in portrait or landscape format
  • 3D view with attitude
  • Up to 4 hours operating time with one battery charge for typical device use
  • Rechargeable lithium-ion battery
  • microSD card slot, USB-C
  • Bluetooth, WiFi
  • Ext. Voltage 11 - 35 VDC
  • Dimensions approx. 185 x 123 x 23 mm, weight with battery approx. 560 g

The attitude indicator is meant as a backup and is not a substitute for certified onboard equipment.

Scope of delivery:
Garmin Aera 760, mount with cigarette lighter cable, USB-C cable, power adapter, USB-C to USB-C cable, USB-C to USB-A cable, quick start guide (English). A manual (English) is available for download.
